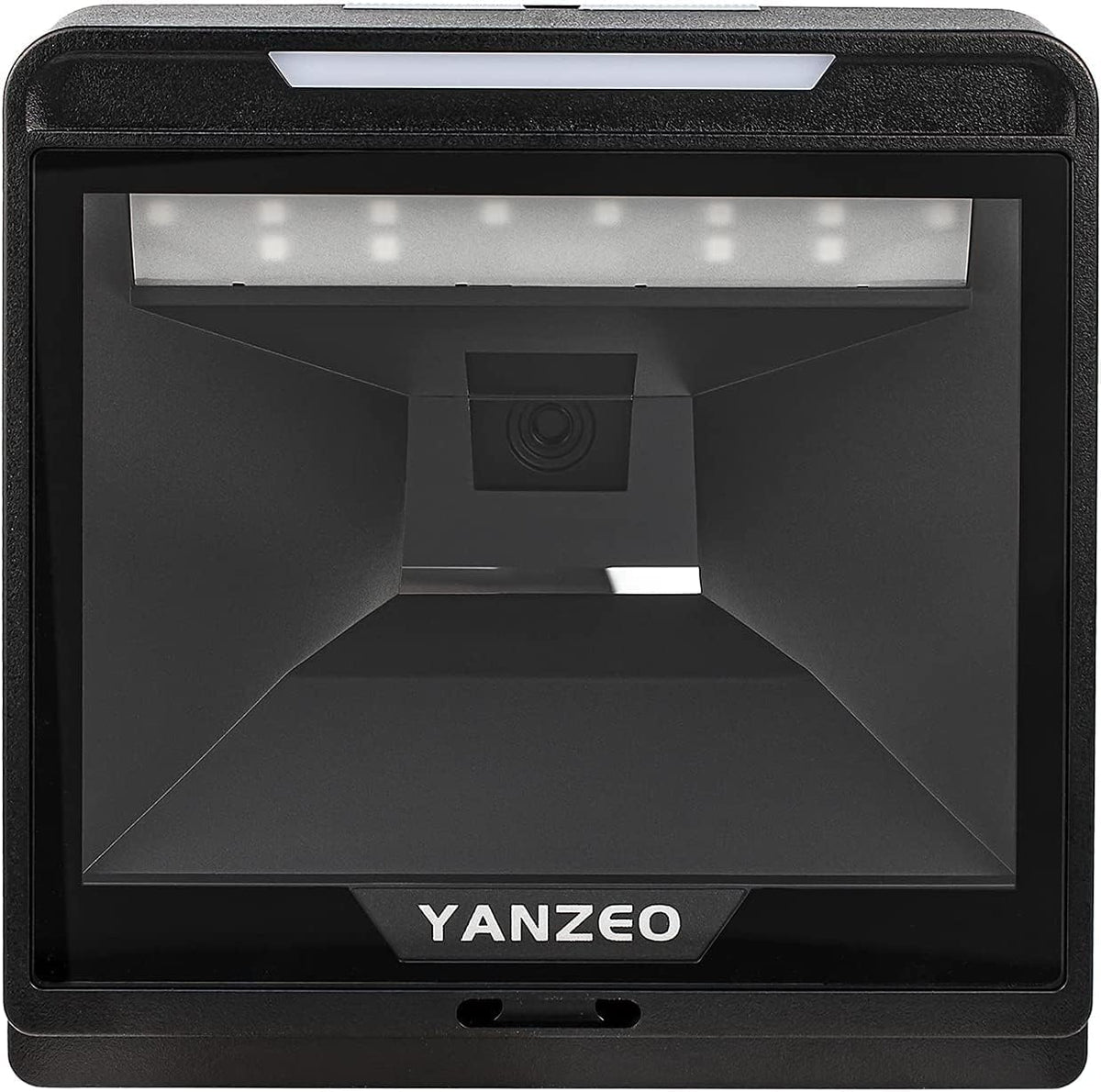

Wired Omnidirectional 2D Barcode Scanner K94428
Wired Omnidirectional 2D Barcode Scanner K94428
Top Quality. Our Products are Manufactured in an ISO-9001 Quality Certified Factory. All Parts are Extensively Tested by Quality Control Experts to Ensure High Quality. These Barcode Scanner are the #1 Choice for Logistics Supermarket Production Line and More Industries Need
Omnidirectional Handsfree Automatic Barcode scanner: YANZEO Barcode Scanner can easily capture bar codes 1D, 2D/QR on labels, paper, and mobile phone or computer displays,Sensitive and accurately.
Optical Imaging Scanning Technology: Which can identify screen code, incomplete code and fuzzy code,distortion barcode, colorful barcode and reflective barcode, Effectively compensate for the problem that scanner can not identify screen code.
Infrared Auto-sensing Scanning: Specially equipped infrared induction trigger, this yanzeo scanner support auto-sensing scanning, barcode recognition more intelligent.
Sound and LED indication of power and operating condition. Decode Capability:1D:UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/ Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
Yanzeo YS868i Flatbed Desktop Omnidirectional 2D Barcode Scanner Wired Barcode Reader Auto Scan 1D QR Code Scanning Platform Hands-Free Image Sensing Bar Code POS Warehousingbr> OPERATIONAL PARAMETER
Light Source1280 pixels(H)*800 pixels(v)
Light SourceIllumination: 617 nm LED
Field of view51° (H) x 34.5° (V)
Host System Interfaces USB 1.1 (HID Keyboard,Virtual COM Port) RS-232 (9.6~115.2Kbps)
Read modeManual/Auto sensor
Print Contrast:More than 25%
Visual Indicator:Blue LED Lights, Buzzer
InterfaceTTL-232 ,USB (HID-KBW、V-Com)
Depth of Filed0-200mm @ UPC/EAN 13mil PCS=90%；0-150mm @ QR 20mil PCS=100%
PHYSICAL CHARACTERISTICS
Dimension H x W x L:160mm*80mm*80 mm(L*W*H)
Package Box size467mm*462mm*345mm(L*W*H)
Weight260g (without cable)
MaterialABS + PC
CableStandard 1.8M straight
POWER PARAMETER
Input Voltage5VDC±10%
Working current170mA
ENVIRONMENTAL PARAMETER
Operating Temperature0°C to 50°C
Working Humidity5% to 95% relative humidity, non-condensing
Storage Temperature-20°C to 60°C
Light Levels0~4,000Lux(Fluorescence),0~100,000Lux(sunlight)
Drop DurabilityDesigned to withstand 1M drops
BARCODE TYPES
1D:UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/ Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
